Product Description

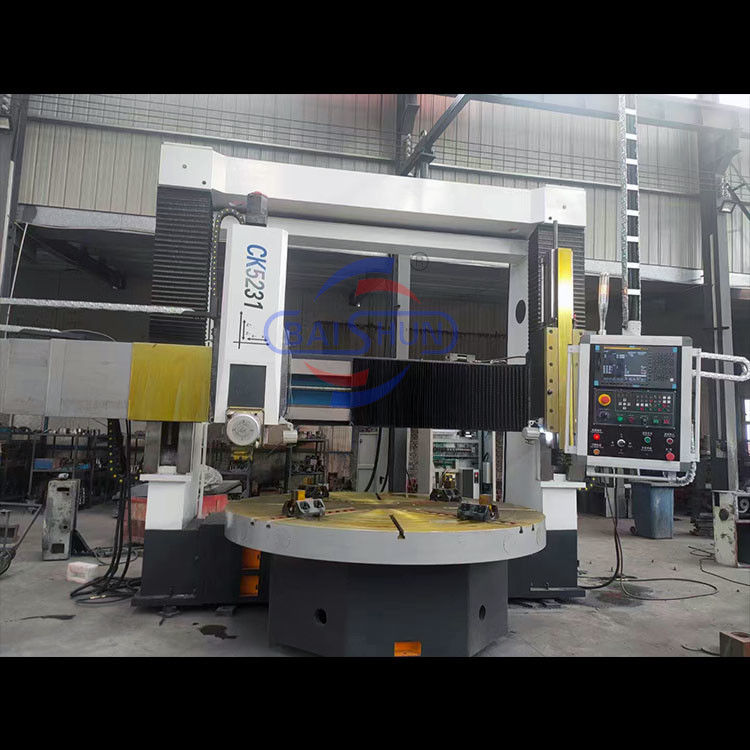

CNC Heavy Duty Vertical Lathe Machine For Wind Power And Energy Parts
This CNC vertical lathe machine is specially designed for heavy duty machining of wind power and energy components.
It is ideal for processing large diameter flanges, turbine parts, and other critical components with high precision and stability.
The double column structure ensures excellent rigidity and stability, allowing the machine to handle heavy duty workpieces such as flanges, bearing rings, valves, and large steel components. With a high precision CNC system, this vertical turning lathe delivers consistent accuracy and reliable performance in demanding industrial environments.
This CNC vertical lathe machine is widely used in industries such as wind power, automotive, energy, and heavy machinery manufacturing. It significantly improves production efficiency, reduces manual operations, and provides flexible machining capabilities for complex parts.
If you are looking for a high performance CNC vertical lathe with C axis for large diameter metal turning, this machine is an ideal choice for your production needs.
Machine parameter
| Specifications |
Unit |
CK5225 |
CK5231 |
CK5240Q |
CK5240 |
| Max.turning diameter |
mm |
2500 |
3150 |
4000 |
4000 |
| Max. height of work piece |
mm |
1600/2000/2500 |
1600/2000/2500 |
1600/2000/2500 |
1600/2000/2500 |
| Max. weight of work piece |
T |
10/20 |
10/20 |
10/20 |
32 |
| Worktable diameter |
mm |
2250 |
2830 |
2830/3150 |
3200/3600 |
| Range of table speeds |
r/min |
2-63 |
2-63 |
2-63 |
2-63 |
| Steps |
|
16 |
16 |
16 |
16 |
| Max torque of work table |
KN.m |
63 |
63 |
63 |
100 |
| Rapid traverse of rail head |
mm/min |
4000 |
4000 |
4000 |
4000 |
| Ram vertical travel of right railhead |
Kn |
35 |
35 |
35 |
40 |
| Ram vertical travel of left railhead |
kn |
30 |
30 |
30 |
30 |
| Range cutting force of right railhead |
mm/min |
1-50 |
1-50 |
1-50 |
1-50 |
| Range cutting force of right railhead |
mm/min |
0.1-1000 |
0.1-1000 |
0.1-1000 |
0.1-1000 |
| Travel of arm |
mm |
1000 |
1000 |
1000 |
1250 |
| Section of arm |
mm |
255×200 |
255×200 |
255×200 |
240×240 |
| Swivel of left and right railhead |
° |
±30° |
±30° |
±30° |
±30° |
| Section of tool |
mm |
40×50 |
40×50 |
40×50 |
50×50 |
| Power of main motor |
Kw |
55 |
55 |
55 |
75 |
| Overall dimensions |
cm |
569×470×480/520 |
605×440×493/533 |
690×510×480/520 |
690×510×480/520 |
Product photos
Packaging & Shipping
Payment terms
We usually use T/T, L/C
T/T:T/T 30% in advance, the balance be paid after inspection before the delivery
Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection
Way of packing
FCL&LCL export standard in 20/40feet container
FCL:Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes
Shipping
MSK/MSC/APL/EMC/PIL and so on
Warranty
12 months under normal use except for wearing parts
Our Services
- 24 Hours after sales service by E-mail or Phone.
- 100% response rate.
- Engineers available to service overseas.
- OEM service is available
- Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
